Creating the Image Index Table

To create the table for the image index, follow the instructions below.

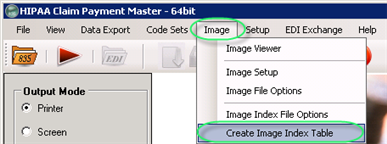

1.	Select Image Create Image Index Table in the main menu.   The "Create Image Index Table" menu

2.	The following window will appear.   The "Create Image Index Table" window

4. Then make sure the image index table script is correct.

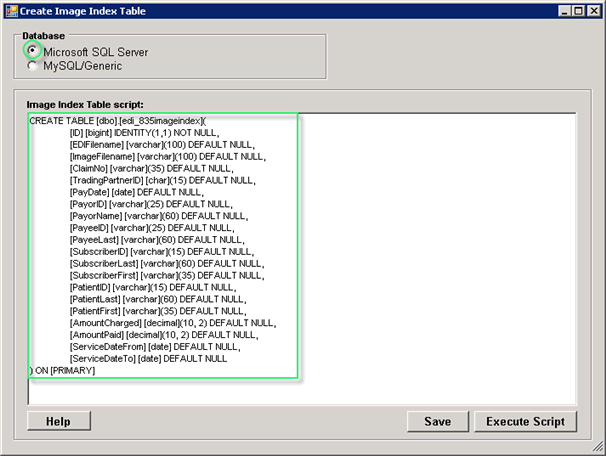

The "Create Image Index Table" window with the "Microsoft SQL Server" option selected

The "Create Image Index Table" window with the "MySQL/Generic" option selected

5. Click on the "Execute Script" button.


The "Execute Script" button

Then you will receive a notification like this. Click "OK."

The success message

6. Then click "Save."

Example

You can use the following MySQL/SQL script:

CREATE TABLE `edi_835imageindex` (

 `ID` bigint(20) NOT NULL AUTO_INCREMENT,

 `EDIFilename` varchar(100) DEFAULT NULL,

 `ImageFilename` varchar(100) DEFAULT NULL,

 `ClaimNo` varchar(35) DEFAULT NULL,

 `TradingPartnerID` char(15) DEFAULT NULL,

 `PayDate` date DEFAULT NULL,

 `PayorID` varchar(25) DEFAULT NULL,

 `PayorName` varchar(60) DEFAULT NULL,

 `PayeeID` varchar(25) DEFAULT NULL,

 `PayeeLast` varchar(60) DEFAULT NULL,

 `SubscriberID` varchar(15) DEFAULT NULL,

 `SubscriberLast` varchar(60) DEFAULT NULL,

 `SubscriberFirst` varchar(35) DEFAULT NULL,

 `PatientID` varchar(15) DEFAULT NULL,

 `PatientLast` varchar(60) DEFAULT NULL,

 `PatientFirst` varchar(35) DEFAULT NULL,

 `AmountCharged` decimal(10,2) DEFAULT NULL,

 `AmountPaid` decimal(10,2) DEFAULT NULL,

 `ServiceDateFrom` date DEFAULT NULL,

 `ServiceDateTo` date DEFAULT NULL,

 UNIQUE KEY `ID` (`ID`)

) ENGINE=InnoDB AUTO_INCREMENT=4 DEFAULT CHARSET=utf8;

Tip: Make sure you use a correct symbol ` and not ' in the script.

Tip: If you encounter errors running the script on MySQL or other database systems, then modify it until it works or consult with your database administrator to make the modifications. SQL Scripts share over all platforms a lot of syntax, but still each flavor demands its own adjustments.
